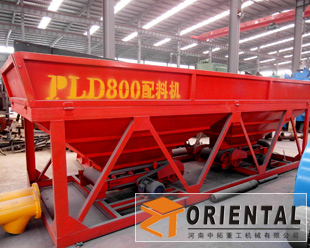

PLD800 Concrete Batching Machine
With two hoppers PLD800 concrete batching plant is mainly used as preparation equipment for concrete mixture and supply mixed materials to JS500 mixer.It’s automatically controlled by PLCK batching controller with advantages of high precision of batching,high adaptability, easy operation, ration-adjusted.

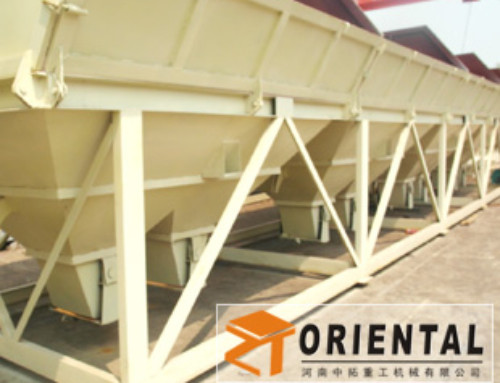

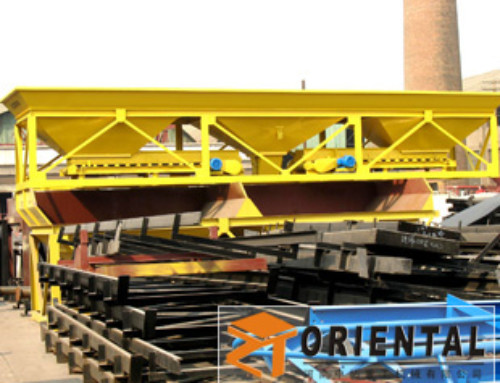

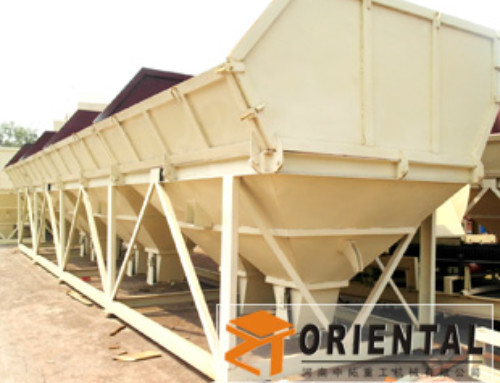

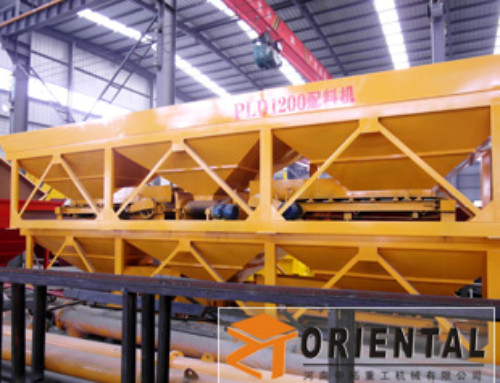

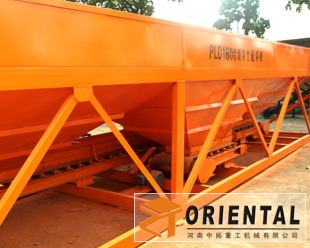

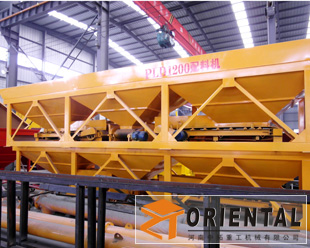

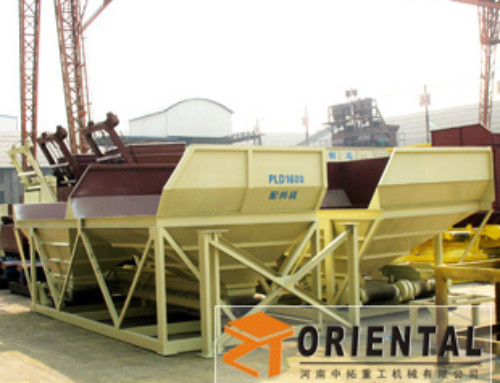

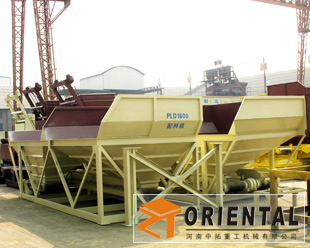

| model | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Weighing bucket
capacity |
800L | 1200L | 1600L | 2400L | 3200L | 4800L |
| Hopper capacity | 2*1.2m3 | 3*2.5m3 | 3*3m3 | 3*12m3 | 3*20m3 | 4*25m3 |
| Production rate | 48m3/h
(dry material) |
56m3/h
(dry material) |
75m3/h
(dry material) |
120m3/h
(dry material) |
160m3/h | 280m3/h |
| Batching accuracy | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Maximum weighing
value |
2000kg | 3000kg | 3000kg | 4000kg | 5000kg | 8000kg |
| Ingredients species | 2-3 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 |
| Feeding height | 2400mm | 2900mm | 2900mm | 4250mm | 4500mm | 2300mm |
| Feeder belt speed | 1m/s | 1m/s | 1m/s | 1.6m/s | 1.6m/s | 1.25m/s |
| power | 3×3=9kw | 4×3=12kw | 3×4=12kw | 7.5kw | 11kw | 18.5kw |
| Total weight | 2450kg | 4500kg | 5600kg | 8500kg | 10200kg | 14000kg |
| Dimensions (L×W×H) |
1580*
2780* |
9400*
2020* |
9400*
2270* |
13200*
3250* |
13100*
3340* |
15520*
3900* |
PLD series concrete batching machine is a kind of equipment with automatically batching material on the front desk and using mixer together. It can automatically finishing the batching procedures of 2-5 kinds of materials (second grade concrete) such as sand, stone, cement according to users’ requirement. These serial products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this serial concrete batching machine with relative concrete mixer, different types and specification combined concrete mixing station can be formed.
PLD800 double-hopper batching plant is consisted of aggregate storage hoppers, belt conveyor,measuring system, weighing hopper, steel framework, electronic control system etc.
Two aggregates hoppers are placed on top of framework, at bottom of which is a belt conveyor supplying aggregates to below weighing hopper .
Under weighing hopper hanging a horizontal belt conveyor hung on lever system in middle of framework by four pull rods measuring cumulatively with sensor .
PLCK batching controller controls measuring of two aggregates automatically. When setup amount is finished, ,aggregates will be conveyed to hopper by belt
conveyor under weighing hoppers .
Temperature sensor：
Supply the exact temperature of aggregate,applicable to some area such as high temperature,freezing and area with special requirement for temperature
Microwave hygronom：
Supply the exact water ratio of aggregate,during batching ,the corresponding water ratio is reduced and the batching precision is improved
Preheat pipe:
The outlet of the pipe is ready in advance,heating the aggregate through preheating gas,applicable to freezing area
Rainproof shed:
Avoid to drench aggregate ,applicable to rainfall area ,filtration shaker,supply you with eligible aggregate materials to improve the quality materials
We can design and make the batching system of aggregate according to the user’s circumstance,field and special requirement
