وصف المشروع
Single Cylinder Mortar Pump(Piston pump)
4 kinds recommended Mortar Pump
- Piston Mortar Pump
- Single Cylinder Piston Mortar Pump
- Double Cylinder Piston Mortar Pump
- Conveyor and Plastering mortar pump
Mortar Pump Application:
- Mortar and Cement
- Convey
- Plastering
| Item | OG130-20 | OG60-40 |
| Work elements | single Kolbenzylinder double action.spherical valve reversing | single Kolbenzylinder double action.spherical valve reversing |
| انتاج | | 130 L/min | 60 L/min |
| Pressure | 2 MPa(20bar/290psi) | 4 MPa(40bar/580psi) |
| Cylinder Dia | φ75 mm | φ75 mm |
| Piston stroke | 85 مم | 85 مم |
| Piston Speed | 180 /دقيقة | 85 /دقيقة |
| Inlet diameter | 51 مم | 38 مم |
| Outlet diameter | 38 مم | 32 مم |
| Power unit | 5.5 كيلوواط(كهربائي) 10حصان(Diesel) | 5.5 كيلوواط(كهربائي) 10حصان(Diesel) |
| Transmission | V-belts +gear case | V-belts +gear case |
| Chassis | Skid | Skid |
| وزن | 260 كلغ | 210 كلغ |
| Dimensions | 1400×650×920 mm | 1280×485×645 mm |
| ملحوظة：Single or Double Passageway.Skid or Tyre | ||
Introduction Of Single Piston Cylinder Mortar Pump
OG50-40 MORTAR PUMP with single Piston cylinder and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, Piston pump is also ideal equipment applied in spraying. Piston pump is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.
Features of Single Cylinder Mortar Pump
1.Single piston single acting;
2.Switch by ball valve;
3.Mechanical transmission, lower failure rate;
4.Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating;
5.Compact structure, convenient for maintaining ;
Applications Of Single Cylinder Mortar Pump
Single Cylinder Mortar Pump is widely used for its convenient maintenance.it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.
The OG5040 Mortar Pump is available in the following versions.

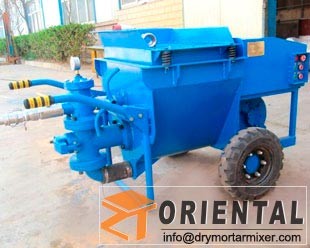

BASIC Electric drive

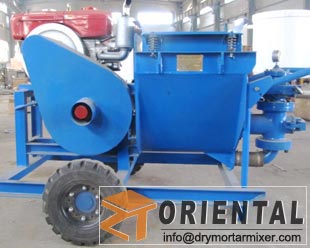

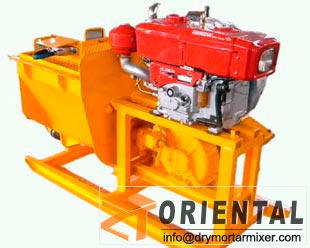

DIESEL engine drive
