وصف المشروع

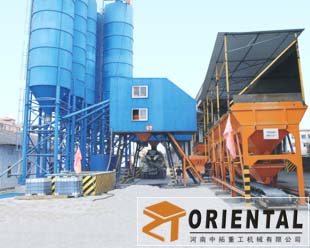

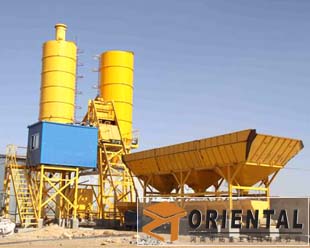

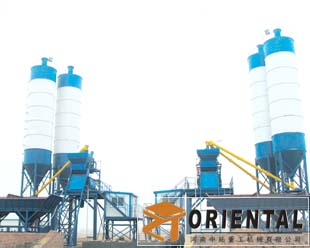

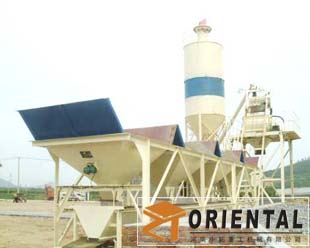

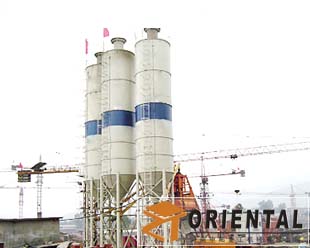

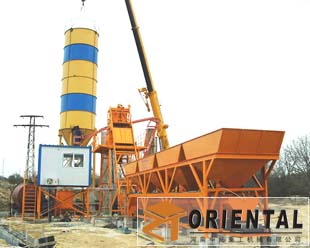

HZS50 Concrete Mixing Plant
HZS50 Concrete Batching Plant high-efficient forced concrete mixing equipment. can produce plasticity/dry-hard concrete with high productivity, and they are widely used in big/medium construction products, road, bridge project, and concrete prefabrication factory.
| يكتب | HZS25 | HZS35 | HZS50 | HZS75 | HZS90 | HZS150 | ||
| Theoretical Production(م3/ساعة) | 25 | 35 | 50 | 75 | 100 | 150 | ||
| Mixer | يكتب | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | |
| قوة(كيلوواط) | 18.5 | 30 | 2X22 | 2X30 | 2X37 | 2X55 | ||
| Discharging Capacity(m3) | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | ||
| Aggregate Diameter(مم) | 60 | 60 | 60 | 80 | 80 | 80 | ||
| Aggregate Bin (m3) | 10 | 10 | 13 | 13 | 20 | 30 | ||
| Belt Conveying Capacity (ذ) | 260 | 280 | 300 | 450 | 550 | 650 | ||
| Weighing Accuracy | Aggregate(كجم) | 1000±2% | 1000±2% | 1200±2% | 2000±2% | 2200±2% | 3000±2% | |
| Cement(كجم) | 350±1% | 450±1% | 600±1% | 1000±1% | 1200±1% | 1800±1% | ||
| Fly Ash(كجم) | 280±1% | 300±1% | 300±1% | 400±1% | 400±1% | 500±1% | ||
| Water(كجم) | 300±1% | 300±1% | 350±1% | 500±1% | 500±1% | 800±1% | ||
| Additives(كجم) | 25±1% | 25±1% | 30±1% | 50±1% | 50±1% | 80±1% | ||
| Total Power (Kw) | 55 | 65 | 85 | 115 | 130 | 170 | ||
| ارتفاع التفريغ (M) | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 | ||
Application Conrete Batching Plant
HZS50 Concrete Batching Plant,is high-efficient forced concrete mixing equipment. The concrete batch plant can produce plasticity/dry-hard concrete with high productivity, and they are widely used in big/medium construction products, road, bridge project, and concrete prefabrication factory. They are also be called concrete mixing plant or ready mix concrete plant, they are desirable equipment for producing the Commercial Concrete.
Features of HZS50 Concrete Batching Plant
1. Stability and Durability: adapt and apply the most advanced technologies around the world;
2. Reliability: 20 years of experiences in manufacturing HZS Concrete Batching Plants;
3. Stationary modular structure, fast and easy installation;
4. Double shaft forced mixer, excellent mixing performance with high efficiency and high productivity;
5.Computers with PLC controls, easy operation;
6. Excellent environmental protection, dust collection system and anti-noise design.
Main Configuration Of HZS50 Concrete Batching Plant
The plant consists of mixing system,hopper sand and aggregate weigher ,aggregate conveying system,cement weigher ,cement silo ,screw conveyor additive system , water supply ,pneumatic system ,it’s easy to install and quick to dismantle and transported by from of large assembly For convenience of the users ,the plant can use both bag cement and bulk cement.
